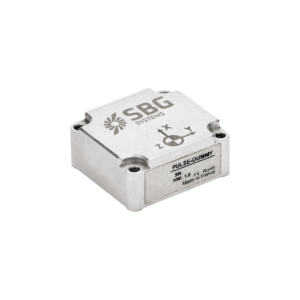

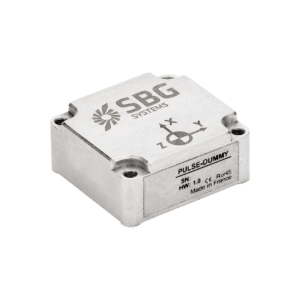

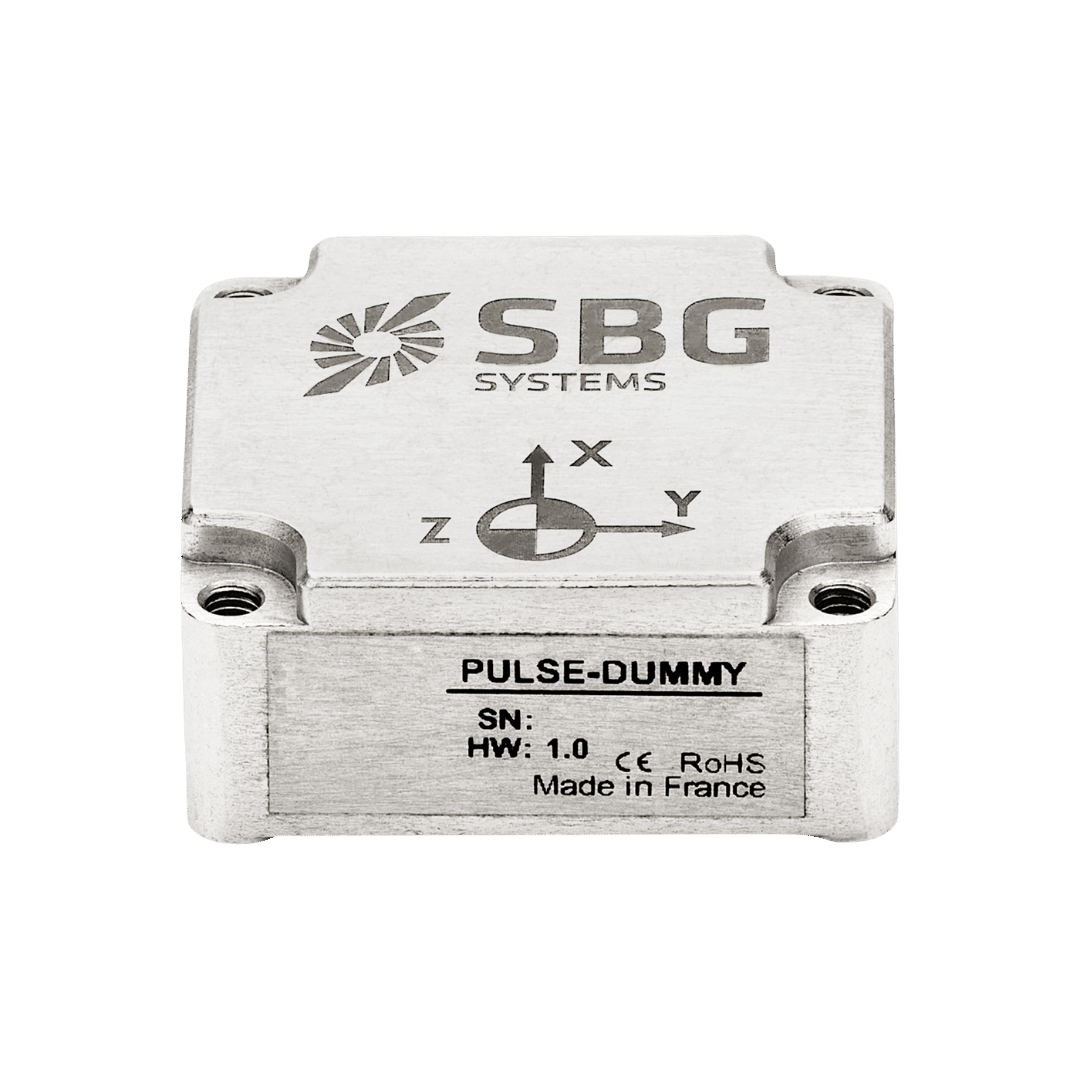

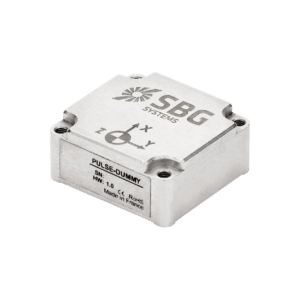

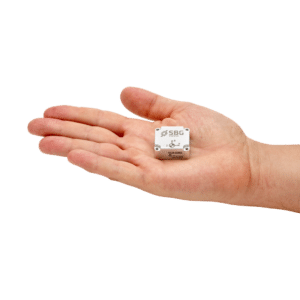

Pulse-40 A small yet powerful tactical-grade IMU for all missions
Pulse-40 IMU is a miniature tactical-grade Inertial Measurement Unit that embeds low noise gyroscopes and accelerometers to deliver optimal performance in applications where precision and robustness matter in all conditions.
It has been engineered with redundant sensor design that improves data robustness, as it performs continuous built-in-test (CBIT). This make Pulse-40 ideal for critical applications.
Discover all Pulse-40 features and applications.
Features
Pulse-40 is a miniature, 6 degrees of freedom (6DoF), tactical grade Inertial measurement unit (IMU), designed for a wide range of applications, that delivers unmatched performance in harsh conditions, with no compromise on SWaP.
Based on a redundant integration of MEMS accelerometers and gyroscopes, Pulse-40 features a unique set of benefits for a so small inertial measurement unit. It has low sensor noise, high bandwidth and high data rate that are perfectly aligned with stabilization applications requirements.
Pulse-40 is tailored for vibrating environments, thanks to an ultra low Vibration Rectification Error (VRE) and a robust aluminum enclosure.
Check out more information on our Pulse-40 specifications.
Product specifications
Accelerometer performance
±40 g Long term bias repeatability
1 mg Bias in-run instability
6 μg Scale factor
300 ppm Velocity Random Walk
0.02 m/s/√h Vibration Rectification Error
0.03 mg/g² Bandwidth
480 Hz
Gyroscope performance
± 2000 °/s Long term bias repeatability
250 °/h Bias in-run instability
0.8 °/h Scale factor
1,500 ppm Angular Random Walk
0.08 °/√h Vibration Rectification Error
0.2 °/h/g² Bandwidth
480 Hz
Interfaces
Binary sbgECom Output rate
Up to 2 kHz Inputs / Outputs
1x UART (LvTTL) out + 1x UART (LvTTL) in – up to 4 Mbps CAN
1x CAN 2.0 A/B, up to 1 Mbps Sync IN/OUT
1 x Sync in/out (Event in, Sync out, Clock in) Clock Modes
Internal or external (direct at 2kHz or scaled) IMU configuration
sbgINSRestAPI (clock mode, ODR, sync in/out, events)
Mechanical & electrical specifications
3.3 to 5.5 VDC Power consumption
0.30 W EMC
EN 55032:2015, EN 61000-4-3, EN 61000-6-1, EN 55024 Weight (g)
12 g Dimensions (LxWxH)
30 mm x 28 mm x 13.3 mm
Environmental specifications & operating range
IP-50 Operating Temperature
-40 °C to 85 °C Vibrations
10 g RMS – 20 to 2 kHz Shocks
500 g for 0.3 ms MTBF (computed)
50 000 hours Compliant with
MIL-STD-810
Applications
Pulse-40 is a high-performance inertial measurement unit (IMU) designed to meet the demanding needs of various applications across multiple industries.
Its technology ensures accurate and reliable motion sensing, making it ideal for applications in robotics, aerospace, automotive, and marine environments.
Pulse-40 excels in providing precise orientation and positioning data, enabling seamless integration into systems that require high levels of stability and responsiveness.
Experience Pulse-40’s precision and versatility and discover its applications.
Compare Pulse-40 with other products
Explore how Pulse-40 stacks up against other products with our comprehensive comparison table.
Discover the unique advantages it offers in performance, precision, and compact design, making it a standout choice for your orientation and navigation needs.
 Pulse-40 |

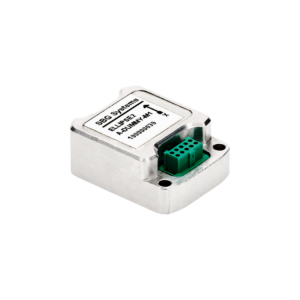

 Ellipse Micro IMU |
|
|---|---|---|
| Range Accelerometer | Range Accelerometer ±40 g | Range Accelerometer ± 40 g |
| Range Gyroscope | Range Gyroscope ± 2000 °/s | Range Gyroscope ± 1000 °/s |
| Bias in-run instability Accelerometer | Bias in-run instability Accelerometer 6 μg | Bias in-run instability Accelerometer 14µg |
| Bias in-run instability Gyroscope | Bias in-run instability Gyroscope 0.8 °/h | Bias in-run instability Gyroscope 7 °/h |
| Velocity Random Walk | Velocity Random Walk 0.02 m/s/√h | Velocity Random Walk 0.03 m/s/√h |
| Angular Random Walk | Angular Random Walk 0.08 °/√h | Angular Random Walk 0.18 °/√h |
| Bandwidth Accelerometer | Bandwidth Accelerometer 480 Hz | Bandwidth Accelerometer 390 Hz |
| Bandwidth Gyroscope | Bandwidth Gyroscope 480 Hz | Bandwidth Gyroscope 133 Hz |
| Output rate | Output rate Up to 2kHz | Output rate Up to 1kHz |
| Operating voltage | Operating voltage 3.3 to 5.5 VDC | Operating voltage 4 to 15 VDC |
| Power consumption | Power consumption 0.30 W | Power consumption 400 mW |
| Weight (g) | Weight (g) 12 g | Weight (g) 10 g |
| Dimensions (LxWxH) | Dimensions (LxWxH) 30 mm x 28 mm x 13.3 mm | Dimensions (LxWxH) 26.8 mm x 18.8 mm x 9.5 mm |
Product compatibility
sbgCenter
sbgCenter
Pulse-40 – Documentation & resources
Pulse-40 comes with comprehensive documentation, designed to support users at every step.
From installation guides to advanced configuration and troubleshooting, our clear and detailed manuals ensure smooth integration and operation.
Case studies
Explore how Pulse-40 stacks up against other products with our comprehensive comparison table.
Discover the unique advantages it offers in performance, precision, and compact design, making it a standout choice for your orientation and navigation needs.
Our production process
Discover the precision and expertise behind every SBG Systems products. This following video offers an inside look at how we meticulously design, manufacture, and test our high-performance inertial systems.
From advanced engineering to rigorous quality control, our production process ensures that each product meets the highest standards of reliability and accuracy.
Watch now to learn more!
Ask for a quotation : Pulse-40
They talk about us and Pulse-40
We showcase the experiences and testimonials from industry professionals and clients who have leveraged the Pulse-40 product in their projects.
Their insights reflect the quality and performance that define the Pulse-40, emphasizing its role as a trusted solution in the field.
Discover how our innovative technology has transformed their operations, enhanced productivity, and delivered reliable results across various applications.
Pulse-40 FAQ section
Welcome to our FAQ section, where we address your most pressing questions about our cutting-edge technology and its applications.
Here, you’ll find comprehensive answers regarding product features, installation processes, troubleshooting tips, and best practices to maximize your experience with Pulse-40.
Whether you’re a new user seeking guidance or an experienced professional looking for advanced insights, our FAQs are designed to provide the information you need.
Find Your Answers Here !
What is the difference between IMU and INS?
The difference between an Inertial Measurement Unit (IMU) and an Inertial Navigation System (INS) lies in their functionality and complexity.
An IMU (inertial measuring unit) provides raw data on the vehicle’s linear acceleration and angular velocity, measured by accelerometers and gyroscopes. It supplies information on roll, pitch, yaw, and motion, but does not compute position or navigation data. The IMU is specifically designed to relay essential data about movement and orientation for external processing to determine position or velocity.
On the other hand, an INS (inertial navigation system) combines IMU data with advanced algorithms to calculate a vehicle’s position, velocity, and orientation over time. It incorporates navigation algorithms like Kalman filtering for sensor fusion and integration. An INS supplies real-time navigation data, including position, velocity, and orientation, without relying on external positioning systems like GNSS.
This navigation system is typically utilized in applications that require comprehensive navigation solutions, particularly in GNSS-denied environments, such as military UAVs, ships, and submarines.
What is an Inertial Measurement Unit?
Inertial Measurement Units (IMUs) are sophisticated devices that measure and report a body’s specific force, angular velocity, and sometimes magnetic field orientation. IMUs are crucial components in various applications, including navigation, robotics, and motion tracking. Here’s a closer look at their key features and functions:
- Accelerometers: Measure linear acceleration along one or more axes. They provide data about how quickly an object is speeding up or slowing down and can detect changes in motion or position.
- Gyroscopes: Measure angular velocity, or the rate of rotation around a specific axis. Gyroscopes help determine orientation changes, enabling devices to maintain their position relative to a reference frame.
- Magnetometers (optional): Some IMUs include magnetometers, which measure the strength and direction of magnetic fields. This data can help determine the device’s orientation relative to the Earth’s magnetic field, enhancing navigational accuracy.
IMUs provide continuous data on an object’s motion, allowing for real-time tracking of its position and orientation. This information is critical for applications like drones, vehicles, and robotics.
In applications such as camera gimbals or UAVs, IMUs help stabilize movements by compensating for unwanted motions or vibrations, resulting in smoother operations.
