Inertial Measurement Units (IMU)

An Inertial Measurement Unit (IMU) is a sensor that measures both acceleration and rotational movement.

IMUs are essential for motion tracking and control systems, as they provide high-frequency motion data without external infrastructure, making them easy to use and immune to outside interference. They are now widely integrated across a variety of applications, from consumer electronics to aerospace systems. At SBG Systems, we offer reliable, high-performance IMUs designed for a broad spectrum of uses.

Discover our range of IMU products that includes everything from compact models to advanced solutions.

Home IMU

Our range of IMU products

Engineered for excellence, our IMUs deliver exceptional accuracy even in the most demanding environments. Whether navigating open waters, piloting unmanned aerial vehicles, or supporting defense operations, our IMUs provide the critical data needed for seamless navigation, piloting, and stabilization.

Explore our range of products to discover how we are redefining motion tracking and orientation measurement.

Ellipse Micro IMU

Ellipse Micro IMU is an Inertial Measurement Unit that can be used for high performance motion monitoring.

Industrial grade IMU ± 1000 °/s Gyro range 14 μg In run bias instability 0.03 m/s/√h Random Walk

Discover

Ellipse Micro IMU

The smallest and lightest mechanically mounted, industrial grade, fully calibrated IMU.
It embeds 3 gyroscopes, accelerometers, magnetometers, and a temperature sensor.
High Quality IMU calibrated in Dynamics and Temperature.
Sensor configuration is made easy through the sbgCenter interface, provided in the SDK.

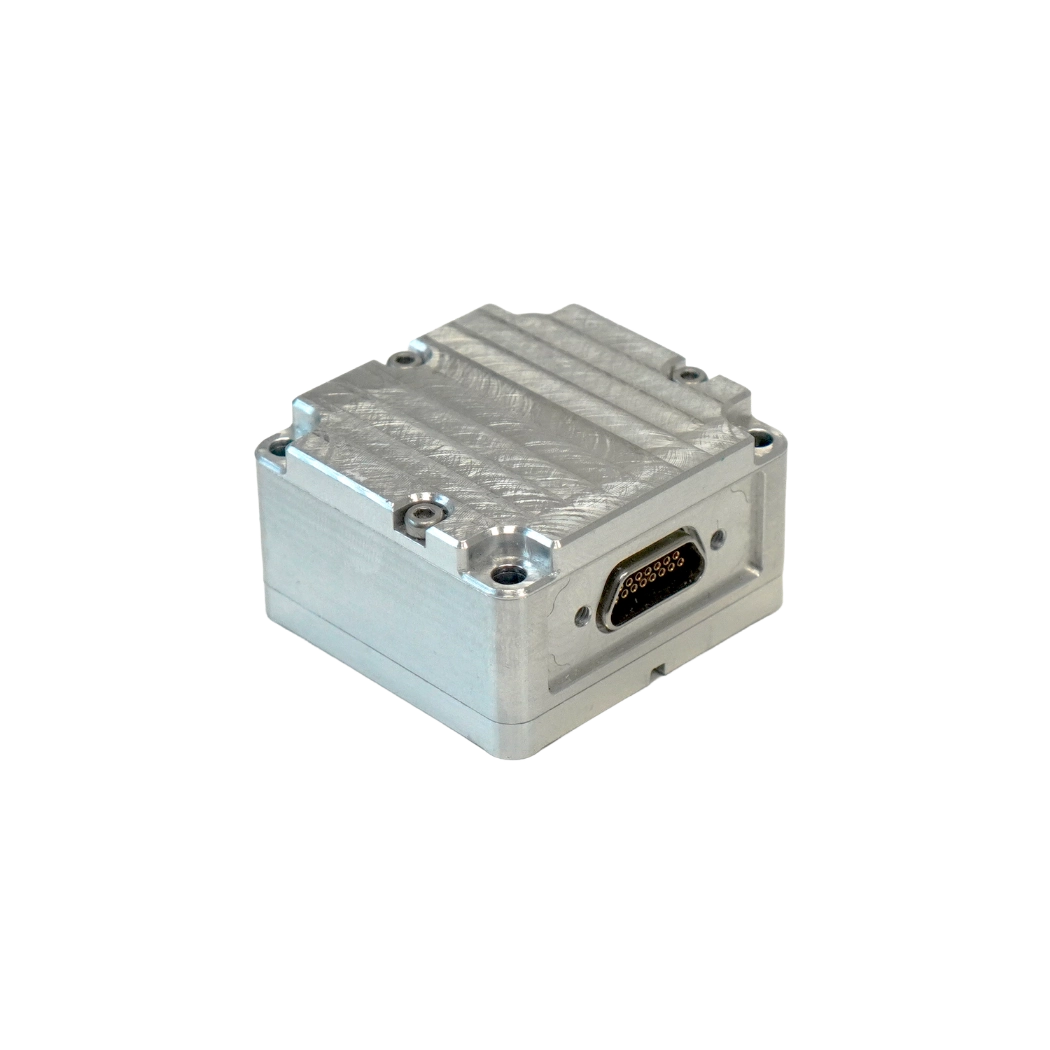

Pulse-40

Pulse-40 IMU is ideal for critical applications. Make no compromise between size, performance, and reliability.

Tactical grade IMU 0.08°/√h noise gyro 6µg accelerometers 12-gram, 0.3 W

Discover

Pulse-40

Achieve tactical grade while maintaining a smart balance of performance in a 12-gram and 0.3 W sensor.
High measurement range (2000°/s and 40g). Variant with limited range has no export control.
Very low noise gyro (0.08°/√hr) and accelerometers (0.02m/s/√hr) and high bandwidth (480Hz).
Factory calibrated for bias, scale factor and axis misalignment. Rigid mechanical frame for integration without recalibration.

Pulse-80 (preview)

Pulse-80 is a premium tactical-grade IMU, engineered for applications demanding compact size and minimal weight without any compromise on performance.

Tactical grade IMU 0.05°/√h Noise gyro 6µg Accelerometers 250 gram, 2 W

Discover

Pulse-80 (preview)

Achieve tactical grade while maintaining a smart balance of performance in a 250 gram and 2 W sensor.
High measurement range (2000°/s and 40g). Variant with limited range has no export control.
Very low noise gyro (0.012°/√hr) and accelerometers (0.02m/s/√hr) and high bandwidth (450Hz).
Factory calibrated for bias, scale factor and axis misalignment. Rigid mechanical frame for integration without recalibration.

Advantages of choosing our Inertial Measurement Units

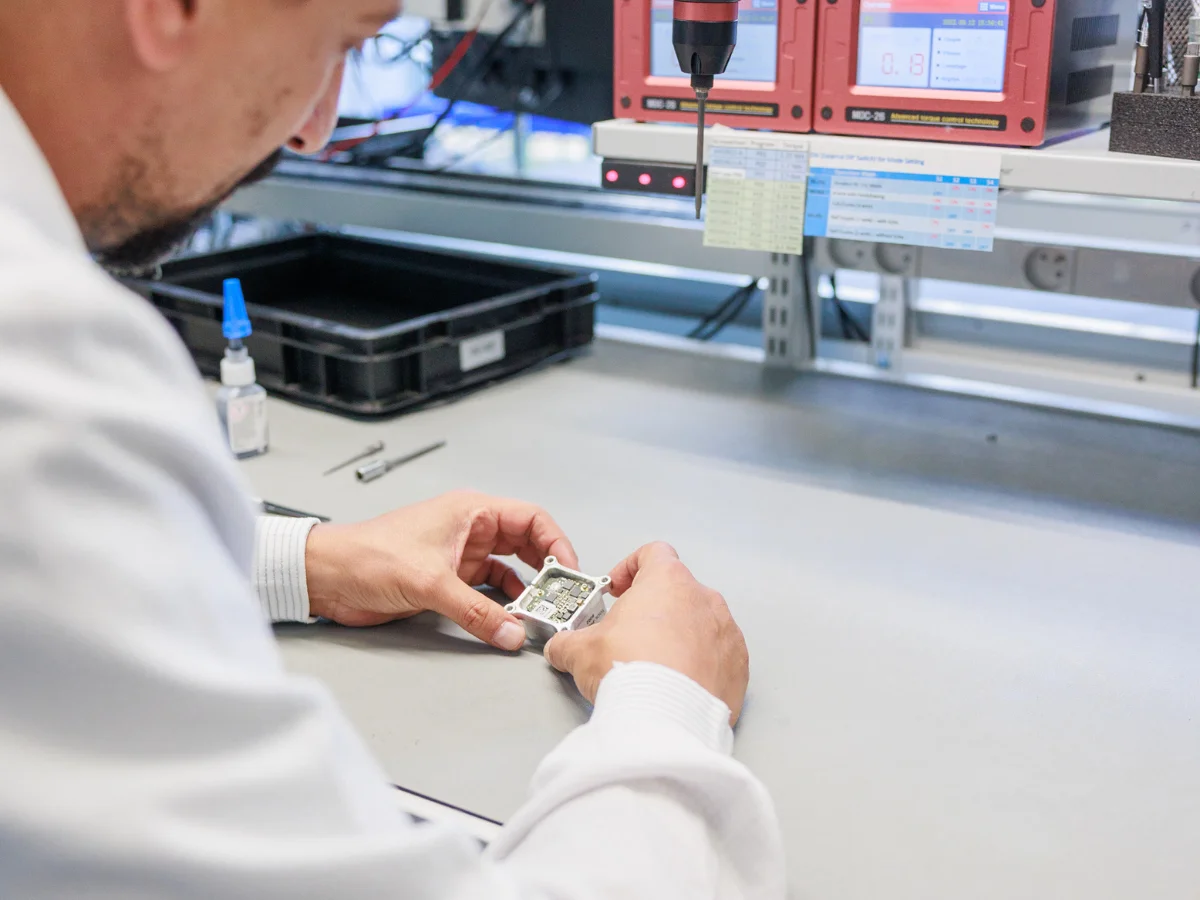

Our IMUs are built with advanced MEMS (Microelectromechanical Systems) technology, allowing them to achieve high precision while maintaining a compact design. Manufactured in our facility in France, each IMU undergoes rigorous dynamic calibration over the full temperature range to ensure quality and consistency.

Each product is delivered with a detailed IMU calibration report to guarantee accurate and dependable data in any condition.

We guarantee that each IMU in our product line undergoes rigorous qualification testing to ensure it can perform under challenging environmental conditions like vibrations and shocks.
