Discover Quanta Series

Quanta series brings direct geo-referencing to UAV and land-based surveying solution – with the smallest form factor. This is a line of high performance GNSS aided Inertial Navigation Systems (INS), capable of operating in a wide range of land, marine and airborne applications. Their board level packaging and its outstanding SWAP enables tight integration into the most constrained applications. At its core, a tactical grade IMU or a near-navigation-grade IMU, capable of minimizing errors during challenging or denied GNSS conditions while the low sensor noise provides outstanding orientation performance.

Home Quanta Series

Quanta series product range

Our product range integrates a MEMS based tactical grade Inertial Measurement Unit (IMU). Designed by SBG Systems, this IMU benefits from a full temperature range compensation to ensure optimal performance in all applications.

Discover everything you need to know about all Quanta versions.

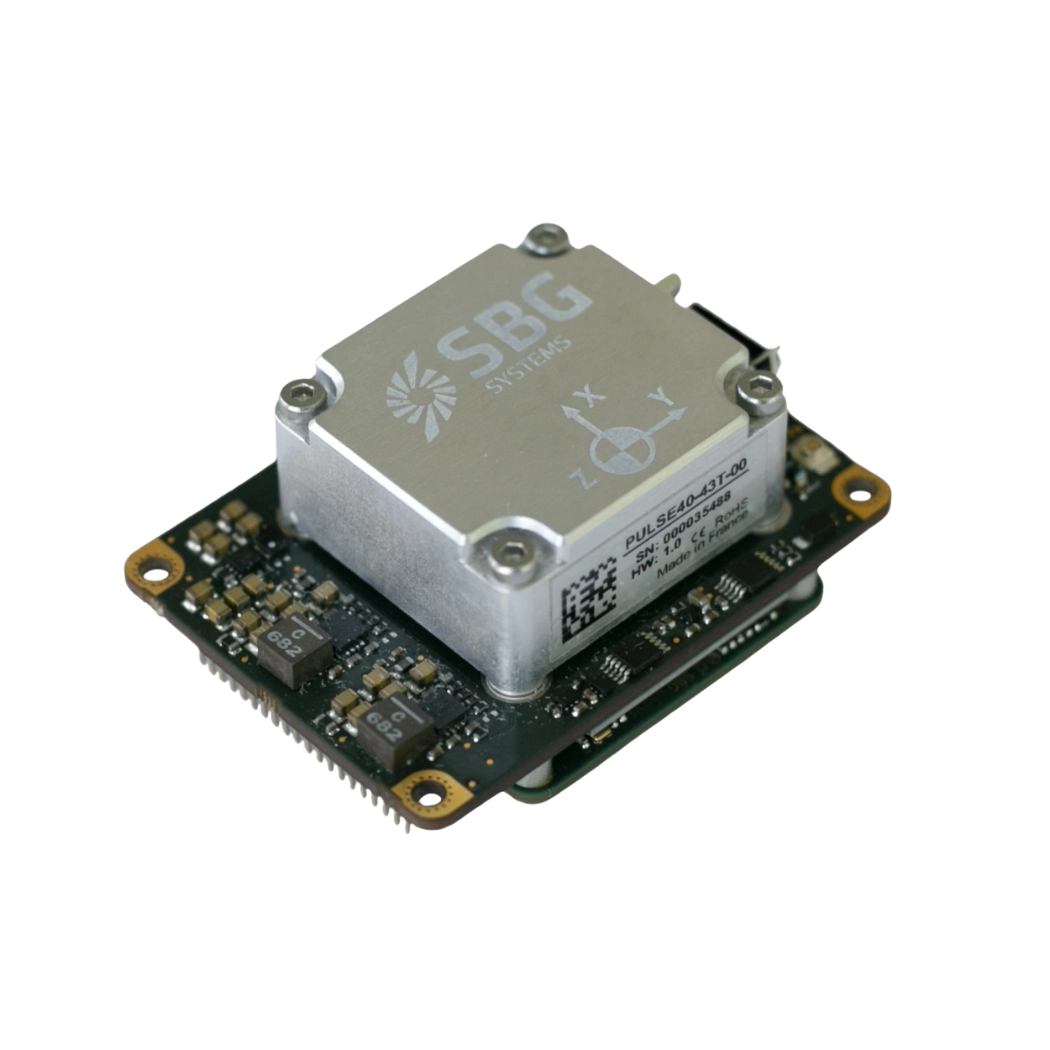

Quanta Micro

Quanta Micro is a GNSS aided Inertial Navigation System designed for space constrained applications (OEM package). Based on a survey grade IMU for optimal heading performance in single antenna applications, and high immunity to vibrating environments.

INS Internal GNSS single/dual antenna 0.06 ° Heading 0.02 ° Roll & Pitch

Discover

Quanta Micro

Based on a survey grade IMU that delivers outstanding performance for such a small device.
Highly versatile: automotive, airborne, and marine motion profiles included.
Quanta directly and precisely geotags your point cloud whether your platform is a UAV or a car.
In UAV based photogrammetry, it also reduces the need for GCPs and overlapping thanks to precise orientation and position data.

Quanta Plus

Quanta Plus combines a tactical IMU with a high-performance GNSS receiver to get reliable position and attitude, even in harshest GNSS environments. It is a small, lightweight, and high-performance product that can be easily integrated into survey systems with LiDAR or other third-party sensors.

INS Internal GNSS single/dual antenna 0.03 ° Heading 0.02 ° Roll & Pitch

Discover

Quanta Plus

High resilience to harsh GNSS environments.
Geodetic triple frequency, full constellation receiver for maximum position accuracy and robustness in standalone GNSS, RTK and PPK.
Its miniature OEM form factor, stellar performance and geodetic GNSS receiver makes it ideal for mapping applications in harsh environments.
Quanta plus also offers the perfect balance for navigation in GNSS challenged environments.

Quanta Extra

Quanta Extra embeds high-end gyroscopes and accelerometers in the most compact form factor. It also integrates an RTK GNSS receiver providing a centimetric position. Bring the highest precision to your Mobile Mapping Solution!

INS Internal GNSS single/dual antenna 0.03 ° Heading 0.008 ° Roll & Pitch

Discover

Quanta Extra

Position accuracy of 0.06 m + 0.5 ppm.
Integrates an Apogee grade MEMS based tactical grade Inertial Measurement Unit (IMU).
Advanced mitigation & indicators, OSNMA ready.
Quanta can be used as a source of time and offers multiple synchronization mechanism: Internal timestamping of all data, PPS, NTP and PTP.
